MBR800 Mobile Broadband Router
Always Connected
The MBR800 is a cost effective broadband router with 3G failover for
built-in redundancy. This router is designed to keep businesses, which
do not require WiFi, running in the event of a primary ISP failure.
When the MBR800 senses a disruption in service it automatically
switches from a wired to a 3G network.* Once service is restored, the
MBR800 automatically fails back to your primary ISP keeping your
business online without interruption to users.

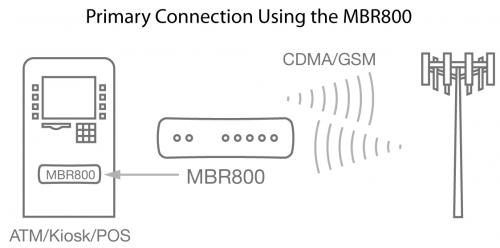

In primary connect-type applications, such as kiosks or POS systems,
the MBR800 still provides failover capabilities through its multiple
modem ports and allows users to share a 3G connection** without any
additional software to load or hardware to configure.
Enterprise Power, Simple Solution
Powered by WiPipe™ technology, the MBR800 includes many features found
in expensive, enterprise-class routers at a fraction of the cost.
Features like load balancing, SNMP management and failover from
wired-to-3G make the MBR800 a powerful solution that is simple to
deploy.
Secure and Reliable
The high-performance MBR800 comes standard with top security features
like multiple concurrent VPN pass-through sessions and a firewall
preventing unauthorized use of your connection. Now you can
confidently and securely access the Internet and share your WAN
connection.
|
This product requires a 3rd party data modem and active data plan for full funtionality
Details
- Compliant with IEEE 802.3 and 802.3u standards
- Supports Cable/DSL modems with dynamic IP, static IP, PPPoE, PPTP, L2tp connection types
- Supports both USB-style and ExpressCard cellular modems
- Traffic control with Virtual Server (max 32 servers) and DMZ
- Compatible with HSPA and EVDO cellular network devices
- UPnP
(Universal Plug & Play) and ALGs support for Internet applications
such as Email, FTP, Gaming, Remote Desktop, Net Meeting, Telnet, and
more
- Flash memory for firmware upgrade, save/restore settings
- Easy local or remote management via HTTP, HTTPS and SNMP
- Compatible with Windows 98SE/NT/2000/XP/2003 Server, Linux and Mac OS
|
Security
- Firewall features Network Address Translation (NAT), and Stateful Packet Inspection (SPI) protects against DoS attacks
- Security of Internet Access Control (Services, URL and MAC Filtering)
- Supports multiple concurrent IPSec, L2TP and PPTP VPN pass-through sessions
|
When the primary ISP fails, the MBR800 automatically provides service
through the 3G broadband network without interruption to the end
Using an MBR800 and 3G instead of wired connections provides greater flexibility for kiosk-
user. Once the primary ISP service is restored, the MBR800 will fail-back, again without interruption to end users.
|
Specifications
|
Model#
|
MBR800 Mobile Broadband Router
|
|
Standards:
|
IEEE 802.3u compliant
|
|
Network Connections:
|
4-LAN, 1-WAN, (Ethernet); 2-USB modem ports, 1 ExpressCard Modem port
|
|
Buttons / Switches:
|
SGNL button (signal strength display mode), Reset button
|
|
LED Indicators:
|
Power, LAN (4), WAN, MDM (Cellular Modem Active) SGNL (signal strength mode)
|
|
Dimensions:
|
8” x 4.7” x 1.2” (204 mm x 120 mm x 29 mm)
|
|
Certifications:
|
FCC Part 15 Class B & CE
|
|
Operating Temperature:
|
0 C to 50 C
|
Also see the Mobile Wireless Amplifier System
 or call (541) 601-8282 for more info on the MBR800 Mobile Broadband Router.
|
