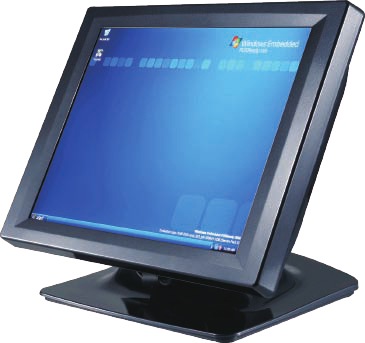

Touch Screen Monitor RDT-150 POS All-in-One Terminal

Touch Screen All-In-One POS System

touch screen monitor all-in-one pos terminal

The RDT series is a multifunctional Touch system specifically for retail and hospitality applications such as hotels, restaurants and shops.

RDT 150 Highlights

Low Power Consumption
Quiet Design Structure
Water spill resistant front bezel

Other Features


Integrated MSR	Integrated VFD	Second Monitor Display

Specifications

RDT-150

MOTHERBOARD

CPU

Intel Atom D525, Dual Core, 1.8GHz CPU

System Frequency

533MHz

Memory

2GB 240-PIN DDRIII, up to 4GB DDRIII

Video

Intel GMA950 Integrated Graphic Engine

Audio

Realtek ALC662

Ethernet

Onboard 10/100Mbps Ethernet

DISPLAY

LCD Size

15" XGA TFT LCD

Dimension (mm)

380(W) x 217(D) x 311(H)

Resolution

1024 x 768

Touch Screen Type

LIYI or ELO Resistive Touch Screen
(RS-232 or USB Touch Interface)

Tilt Angle

0 - 90º

Power Supply

Internal Power Supply

STORAGE DEVICE

HDD

2.5" HDD x 1 or Compat Flash-II CF Card x 1

I/O PORTS

Serial Port

Serial Port x 1 + 2 Optional

Parallel

Parallel Port x1

USB

USB 2.0 Port x 4 External + 2 Internal

PS/2 Keyboard

PS/2 Keyboard Port x 1 & PS/2 Mouse Port x 1

VGA Port

VGA Port x 1

Ethernet Port

RJ-45 Ethernet Port x 1

Audio

Audio Line-in / Line-out / Mic-in Jack x 1 Set

RDT-150 All-in-One Touch Screen Terminal with Intel Atom D525, Dual Core, 1.8GHz CPU, 2GB RAM, 320 GB HDD, Magstripe Reader, POSReady 2009 OS.

$1,070

July Special: RDT-150 All-in-One Touch Screen Terminal with Intel Atom D525, Dual Core, 1.8GHz CPU, 2GB RAM, 320 GB HDD, Magstripe Reader, POSReady 2009 OS, Steel Cash Drawer, Thermal Receipt Printer with Auto-cutter, Bar Code Scanner.

$1,428

or call (541) 601-8282 for more information on the RDT-150 All-in-One POS Touch Screen Terminal.
