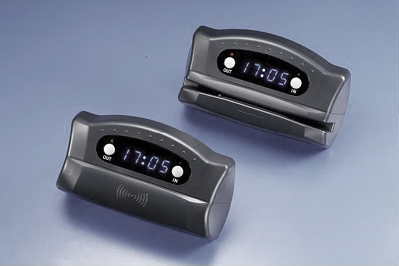

Time and Attendance Clock Recorder


Replace your old time clock with this computer based network ready time keeping system.


TR515 Time and Attendance Recorder - is simple to install and operate, this Time and Attendance terminal provides all the basic Time Recorder functionality in an attractive and cost-effective package.

Extremely versatile, TR515S terminal can be used as either a wall-mount or as a desktop device.  An excellent viewing angle is provided in both orientations by rotating the unit 180 degrees.

Time Clock Reader Features

• Equipped with both serial interfaces, RS-232 & RS-485
  -- RS-232 interface for single unit installation
  -- RS-485 interface for multi-units or long distance
• Bright , high-contrast blue LED display shows time of day, last 4 digits of the ID-code and error messages
• Approximately 8200 records storage capacity
• Built-in Ring relay for external ring ( bell ) control
• Daily bell schedule of up to 32 different entries
• Built-in Magnetic Card , RFID or Mifare reader 13.56Mhz or Barcode reader
• Two buttons for clocking IN and OUT

  Specifications

• Display: 4 x 7-segment Blue light LED
• Magnetic card reader: ISO Track 2 , 75 BPI
• Barcode reader: Visible or IR , numerical Code 39
• RFID reader: 125 KHz , ASK , 64 bits, Manchester coding or Mifare reader 13.56Mhz.
• Database capacity: App. 8200 records
• Serial interface - RS-232 & RS-485
• Bell control relay: 1A , 12 V max.
• Power suppl: DC 9 V , 500 mA
• Dimensions: W185 x H110 x D51 mm
• Installation: Wall-mount or desktop
• Operating temperature: 0 ~ 55 Deg. C
• Operating humidity: 5 ~ 95 % relative


TR515 with magnetic card reader and windows compatible software. Serial interface	$445
TR515 with magnetic card reader and windows compatible software. RJ45 ethernet interface	$495
