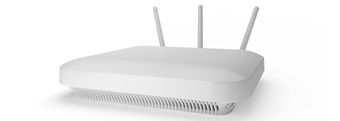

AP 7532 Dual Radio 802.11ac 3x3 External Antenna
AP 7532 Dual Radio 802.11ac 3x3 External Antenna



You need more out of your wireless LAN - you need to support more wireless users and more of today's extremely demanding voice and data applications. You need the ultimate performance and bandwidth that 802.11ac can deliver, but cost has been an issue - until today.

Now, you can get maximum 802.11ac performance at a minimum cost with the AP 7532 from Motorola Solutions. The AP 7532 is packed with a comprehensive feature set that delivers today's fastest available Wi-Fi speeds. No matter how many users are on your WLAN or what applications they are using, they can count on dependable blazing desktop-style speed. The next generation 802.11ac radio delivers up to four times the speed of 802.11n. The 802.11n radio ensures backward compatibility with every mobile device in use in your operation today - and advanced technology helps boost the bandwidth of the 802.11n radio to 802.11ac levels. If you need sensor capability, you get the flexibility to meet different business needs - you can deploy a single AP 7532 as both a sensor and an access point for maximum cost-efficiency, or as a dedicated sensor for the most robust sensing functionality. No matter where you need 802.11ac speed, the AP 7532 will fit right in, from customer-facing public spaces to the warehouse floor. Choose internal antennas for a sleek understated look that is ideal in customer facing or carpeted office areas, or external antennas that allow you to choose the antennas that will deliver maximum range and performance in demanding industrial areas. And with our high-powered radios, you'll need fewer access points. The result? Maximum capacity and performance for your wireless LAN - at a new low cost.

Technical Information

Wireless LAN Standard : IEEE 802.11ac
ISM Band : Yes
UNII Band : Yes
ISM Minimum Frequency : 2.41 GHz
ISM Maximum Frequency : 2.47 GHz
UNII Minimum Frequency : 5.18 GHz
UNII Maximum Frequency : 5.85 GHz
Total Number of Antennas : 3
Number of External Antennas : 3
Antenna Connector : RP-SMA Connector
Wireless Transmission Speed : 1.27 Gbit/s
Wireless Security :
  • WPA2
  • WPA

Features :
  • MIMO Technology
  • Quality of Service (QoS)
  • LED Indicator


Ethernet Technology :
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet

Number of Network (RJ-45) Ports : 1
Network (RJ-11) : No
PoE (RJ-45) Port : No
VGA : No
Audio Line Out : No
Serial Port : No
USB : No
Powerline : No
Management Port : Yes
Power Description

Input Voltage : 48 V DC
Power Source : PoE
Physical Characteristics

Form Factor :
  • Wall Mountable
  • Ceiling Mountable

Height : 1.6"
Width : 6.5"
Depth : 7.1"
Weight (Approximate) : 1.80 lb

Certifications & Standards : Safety:
  • UL
  • cUL 60950-1
  • IEC
  • EN60950-1
  • UL2043
Radio Approvals:
  • FCC
  • EU

IEEE Standards:

  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11ac
  • 802.11d
  • 802.11i
  • 802.3af
  • 802.3
  • 802.1q
  • 802.1x
  • 802.1p

Environmentally Friendly : Yes
Environmental Certification : RoHS


AP 7532 802.11ac Access Point    $620.00

or call (541) 601-8282 for more info on the AP 7532 Dual Radio 802.11ac 3x3 External Antenna.
