LCD Touch Monitor (Promac LM1560 15 inch)

15" LCD Touch Monitor (Promac LM1560)

Overview

The newly developed PROMAC LM1560 - 15" touch LCD monitor is specially designed for touch screen applications. Integrated with the most reliable 5-wire resistive touchscreen and with its sturdy supporting stand, this monitor is ideal for almost any application that demands touch interactive function.

Features at a Glance

High brightness LCD with 1024x768 resolution
Precise 5-wire resistive touch screen
Sturdy pedestal stand designed for rugged touch screen use
Built-in 2-watt speakers
Optional attachable magnetic card reader
VESA standard mounting holes with flexible mounting options
3-Year limited warranty

Specifications

*Product Information*
Model	LM1560
Touch Screen	5-wire resistive
Functional Features
Display Panel	TFT LCD
Display Size	15.0 Inches
Pixel Pitch	0.297(W) x 0.297(H)
Display Mode	VGA 640 x 350 85Hz(max) VGA 720 x 350 85Hz(max) VGA 640 x 400 85Hz(max) VGA 720 x 400 85Hz(max) VGA 640 x 480 85Hz(max) SVGA 800 x 600 85Hz(max) XGA 1024 x 768 85Hz(max)
Max. Resolution	1024 x 768
Contrast Ratio	500:1
Brightness	250 nit
Response Time	5/20(on/off) ms
Display Colors	16.7(M)
Viewing Angle	70/70/55/60(L/R/U/D)
Panel Keys	Power on/off, Enter, Adjust (+, -)
OSD Controls	Brightness, Contrast, Clock, Phase, Image H-position, Image V-position, R/G/B color drive, OSD H-position, OSD V-position, OSD Language type.
Input Signal	RGB Analog 0.7V p-p
Panel Signal Interface	LVDS
Storage Temperature	-4?F~140?F (-20?C~60?C)
Operation Temperature	32?F~122?F (0?C~50?C)
Physical Features
Video Connector	15 pin D-sub
Audio System	Audio input (3.5mm Phone Jack) Audio output (3.5mm Phone Jack)
Audio System	2W / Per Channel (speaker)
Touch Options	5-wire resistive with RS232 interface (default), optional capacitive touch screen or USB interface
Power Supply	Extern adapter power supply: AC Input: 100~240V, 1.2A, 50-60Hz DC Output: 12.0V, 4.0A(max), 48W(max)
Dimensions ( WxHxD, without stand)	15.55? (395mm) x 11.61? (255mm) x 2.56? (65mm)
Weight (without stand)	8.5 lbs (3.86 kg)
Color Options	Black or beige

Note: Specifications subject to change without notice.

Options & Accessories

MSR (3-track, USB)
Pole mount kit
Wall mount kit
Robotic arm kit

Order Information

Note:

Items in Basic Configuration will be included by default. Optional items may be at additioanl cost.

PRODUCT MODELS & DESCRIPTIONS
LM1560		15" LCD Touch Screen Monitor with USB interface	$465.00

or call (541) 601-8282 for more information on the LM1560 LCD Touch Screen Monitor.

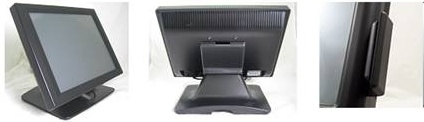

Product Photos

LM1550 LCD Touch Monitor
LM1560 LCD Touch Monitor

The rear view of LM1550 LCD touch monitor
The Rear View

Touch Screen Monitor
With attachable MSR

LM1550 LCD touch monitor with 6" VESA compliant robotic arm (option)
With Robotic Arm (6", VESA compliant)

LM1550 LCD touch monitor with pole-mount (option)
With Pole-mount Option
