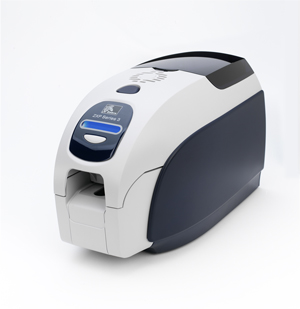

Plastic ID Card Printer Encoder ZXP3

Plastic ID Card Printer

Standard Features

True Colours ix Series high-performance ribbons with intelligent media technology
Load-N-Go drop-in ribbon cartridge
Microsoft Windows drivers

Compact and easy to use, the affordable ZXP Series 3 direct-to-card printer is the best choice for applications where small space, minimal operator training and print quality are important. The printer offers a full suite of encoding options, including PC/SC and EMV-certified smart card encoding, over USB and Ethernet. Print one or both sides of the card with high-quality color or monochrome images for a variety of applications.

Ideal For

Access Control
Gift Cards
Loyalty Cards
Membership Cards
Staff Identification
Student Identification

More Standard Features

USB connectivity
Covered 100 card feeder (30 mil)
45 card output hopper (30 mil)
16 character LCD display
300 dpi print resolution
Two-year warranty on printer
Kensington physical lock slot

Printer Specifications

Single or Dual-sided Printing
Color Capability: Full Color Monochrome
Print Method: Direct-to-Card Dye Sublimation
Lamination: None
Card Feeder: Integrated Card Feeder
Card Feeder/Hopper Capacity CardSense single-card feeder
Resolution: 300 dpi (12 dots/mm)
Memory: 32 MB memory standard
Print speed

710 cph, monochrome, single-sided
180 cph, color, single-sided
140 cph, color, dual-sided

Media Characteristics

Ribbons

Zebra True Colours ix Series high-performance ribbons with intelligent media technology
Load-N-Go drop-in ribbon cartridge

Operating Characteristics

Operating temperature: 60° F (15° C) to 86° F (30° C)
Storage temperatures: 23° F (-5° C) to 158° F (70° C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 20% to 70% non-condensing
Electrical

100-240 Volts AC, 50-60 Hz (auto switching)
Ventilation: Free air

Agency approvals: FCC Class A, CE, UL, CUL approved

Physical Characteristics

Width: 7.9" (201 mm)
Height: 9.3" (236 mm)
Depth: 14.5" (368 mm)
Weight: 12.2 lbs (5.53 kg)

Bar Codes/Symbologies

Linear: Code 39
Code 128 B and C with and without check digit
Interleaved 2-of-5
UPC-A
2-D PDF 417
EAN-8 and EAN-13

Card Detail

Card Types

PVC, PVC Composite
Magnetic stripe ISO 7811
Smart card contact and contactless (30 mil card only)

Card Size: CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Card Thickness: 30 mil

or call (541) 601-8282 for more info.

ZEBRA ZXP SERIES 3 SINGLE-SIDED CARD PRINTER

$999

Also available - CardFive software for the P Series ID Card Printers

Other plastic id card printer models: C30 , P120 , P330, & P430

ID Card Printer

ZXP3 Single Sided Plastic Card Printer
